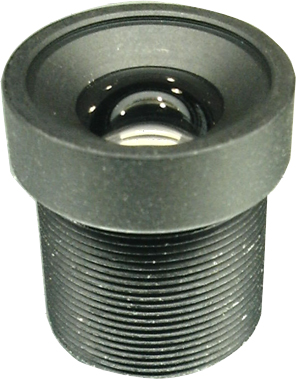

Newst 6MM High-Definition CCTV Lens For Board Camera True F1.8
Newst 6MM High-Definition CCTV Lens For Board Camera True F1.8
Waterproof Camera HD 1080P Helmet Sport Mini DVR Camera Monitor
Waterproof Camera HD 1080P Helmet Sport Mini DVR Camera Monitor
Through Fog and Automatic Tracking Full HD High Sensitivity Color Camera Module with 22x Optical Zoom Panasonic GP-MH322
Through Fog and Automatic Tracking Full HD High Sensitivity Color Camera Module with 22x Optical Zoom Panasonic GP-MH322

Featured Products:
SONY BRC-H900 HD 1/2 type 3CMOS P/T/Z Color Video Camera
SONY XCD-MV6 Miniature 1394.B Industrial Monochrome Digital Video Camera
Sony EVI-HD1 HD Pan/Tilt/Zoom Original Video Conference Camera
Newest SAMSUNG SCM-6200 Full HD 20X Optical 2 Million Zoom Camera
NEW SONY BRC-300P Pan/Tilt/Zoom CCD Color Video Camera
Samsung 1/4 inch Interline Transfer CCD Camera + Indoor Dome Camera
Mini Hidden IP Camera remotely view and record the real time video and audio
0.0Lux 520TVL Mini SPY CCTV 6 IR LEDs Audio IR Camera


Plug and Play Mini Spy 1/3 520TVL 0.008lux Audio IR CCTV Camera

Plug and Play Mini Spy 1/3 520TVL 0.008lux Audio IR CCTV Camera


Ultra small high definition CCTV camera with excellent night vision.Size: 11.5mm x 11.5mm x 17mm


Condition:New
Model:SPYDAE900MC




Features & functions:
It's an ultra small high definition CCTV camera with excellent night vision.
Size is 11.5X11.5X17mm only, Weight is 2g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Specification:

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC 656 H 492 V PAL 786 H 576 V
IMAGE SIGNAL PROCESS Digital Signal Processing System
SENSOR DIMENSION 4.75mm H 3.55mm V
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 2 1 Interlace
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F2.0 /55
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT 1/60 S TO 1/100000 S OUT 1/50 S TO 1/100000 S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
AUDIO OUT 1.0V p-p/1Kohm
SIZE (L x W x H) 11.5mm x 11.5mmM x 17mm
WEIGHT 2g
WORK CURRENT 72mA
POWER REQUIREMENT DC 3.3V-6V
OPERATING TEMPERATURE - 10 C ~ +50 C less than 90% RH
Connection PIN1-Red DC5V PIN2-Black GND PIN3-Yellow VIDEO OUT PIN4-white AUDIO OUT

Package:

1 * mini camera
