Featured Products:
SONY BRC-H900 HD 1/2 type 3CMOS P/T/Z Color Video Camera
SONY XCD-MV6 Miniature 1394.B Industrial Monochrome Digital Video Camera
Sony EVI-HD1 HD Pan/Tilt/Zoom Original Video Conference Camera
Newest SAMSUNG SCM-6200 Full HD 20X Optical 2 Million Zoom Camera
NEW SONY BRC-300P Pan/Tilt/Zoom CCD Color Video Camera
Samsung 1/4 inch Interline Transfer CCD Camera + Indoor Dome Camera
Mini Hidden IP Camera remotely view and record the real time video and audio
0.0Lux 520TVL Mini SPY CCTV 6 IR LEDs Audio IR Camera


0.0Lux 520TVL Mini SPY CCTV 6 IR LEDs Audio IR Camera

0.0Lux 520TVL Mini SPY CCTV 6 IR LEDs Audio IR Camera


Size:14.5 x 14.5 x 15.5mm only, Weight is 3g ! Minimum illumination is 0.0lux, which can view clearly in almost complete darkness


Condition:New
Model:SPYMN5206IR




Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers;

0.0Lux 520TVL Mini SPY CCTV 6 IR LEDs Audio IR Camera
0.0Lux 520TVL Mini SPY CCTV 6 IR LEDs Audio IR Camera
0.0Lux 520TVL Mini SPY CCTV 6 IR LEDs Audio IR Camera

Features :

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

It's an ultra small  high definition CCTV camera with excellent night vision.
Size is 14.5 x 14.5 x 15.5mm  only, Weight is 3g! Very easy to install and conceal.
Minimum illumination is 0.0lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.

Specification:

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC:656(H)492(V) PAL:786(H)576(V)
IMAGE SIGNAL PROCESS Digital Signal Processing System
SENSOR DIMENSION 4.75mm(H)3.55mm(V)
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 21 Interlace
SENSITIVITY 0.00Lux/5M (IR OPEN)
LENS & VIEW ANGLE 55
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT (1/60 S TO 1/100000 S) OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
SIZE (L x D) 14.5 x 14.5 x 15.5mm
WEIGHT 3g
WORK CURRENT IR on 200mA
POWER REQUIREMENT DC 5.0V
OPERATING TEMPERATURE - 10 C ~ +50C less than 90% RH
Connection PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT

Contents:
Mini camera X 1;
RCA/BNC cable X 1;
AC adapter X 1


Related Items:

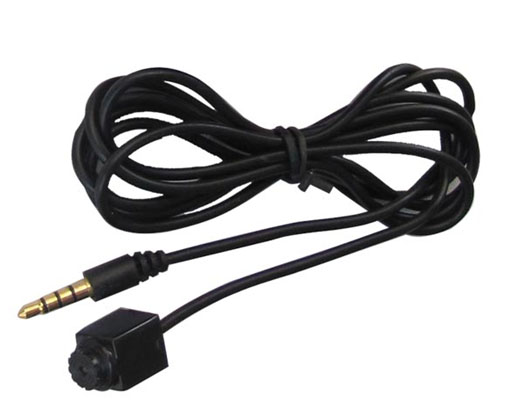

Plug and Play Mini Spy 1/3 520TVL 0.008lux Audio IR CCTV Camera

Plug and Play Mini Spy 1/3 520TVL 0.008lux Audio IR CCTV Camera
Item Number: MC900DA-E
Condition: New

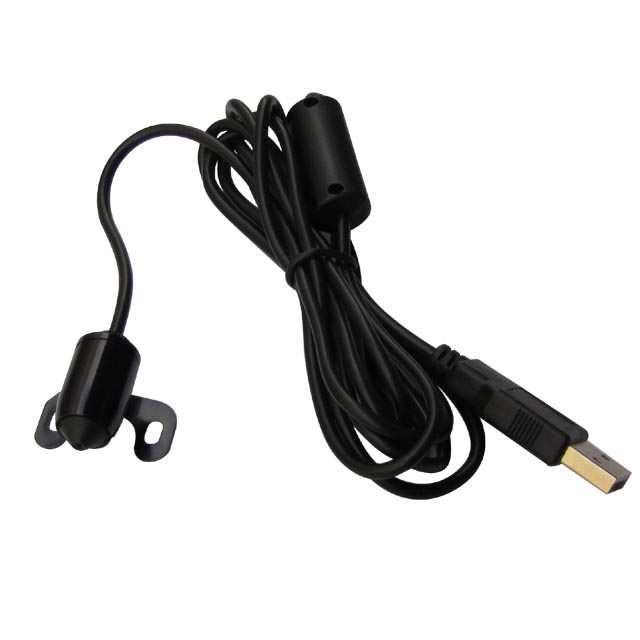

Small size 0.008Lux 520TVL Wireless Bullet Camera

Small size 0.008Lux 520TVL Wireless Bullet Camera
Item Number: SPYTE908
Condition: New

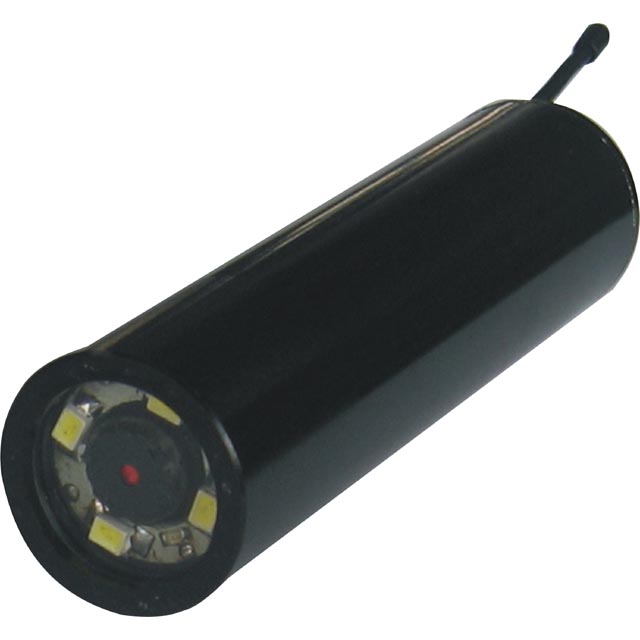

5 Meters Wireless Inspection Camera

5 Meters Wireless Inspection Camera
Item Number: SPY5MWE-800A
Condition: New
