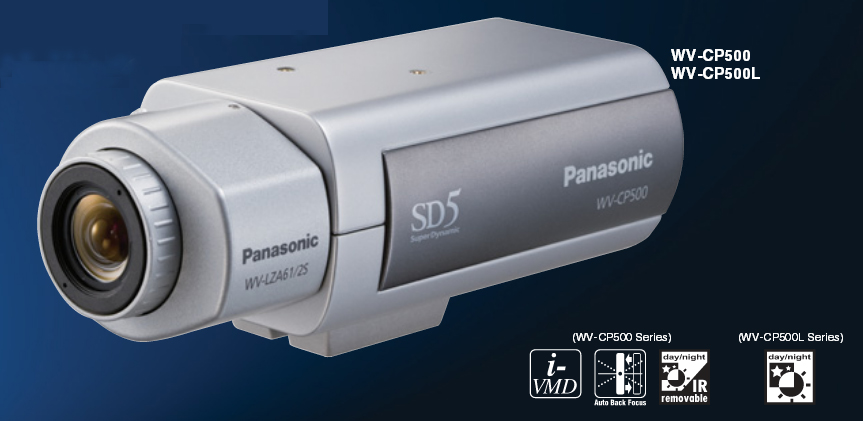

Panasonic WV-CP500L SD5 Day/Night Camera
Panasonic WV-CP500L SD5 Day/Night Camera
Compact Color Block Camera 3.27 Megapixels HD Block Camera SONY FCB-SE600
Compact Color Block Camera 3.27 Megapixels HD Block Camera SONY FCB-SE600

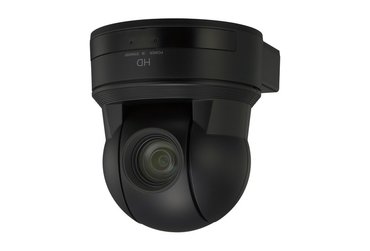

HD PTZ Camera SONY EVI-H100V Professional A/V Camera with DVI
HD PTZ Camera SONY EVI-H100V Professional A/V Camera with DVI

Featured Products:
SONY BRC-H900 HD 1/2 type 3CMOS P/T/Z Color Video Camera
SONY XCD-MV6 Miniature 1394.B Industrial Monochrome Digital Video Camera
Sony EVI-HD1 HD Pan/Tilt/Zoom Original Video Conference Camera
Newest SAMSUNG SCM-6200 Full HD 20X Optical 2 Million Zoom Camera
NEW SONY BRC-300P Pan/Tilt/Zoom CCD Color Video Camera
Samsung 1/4 inch Interline Transfer CCD Camera + Indoor Dome Camera
Mini Hidden IP Camera remotely view and record the real time video and audio
0.0Lux 520TVL Mini SPY CCTV 6 IR LEDs Audio IR Camera


SONY XCD-MV6 Miniature 1394.B Industrial Monochrome Digital Video Camera

SONY XCD-MV6 Miniature 1394.B Industrial Monochrome Digital Video Camera



Condition:New
Model:XCD-MV6




SONY XCD-MV6

Sony continues to expand its popular XCD 1394.b camera series with the latest introduction of its ultracompact and lightweight, monochrome XCD-MV6. This new progressive scan camera incorporates a 1/3-type wide VGA global shutter CMOS sensor and is one of the smallest 1394.b cameras available on the market. The XCD-MV6 cameras measures 29 x 29 x 19 mm (1 3/16 x 1 3/16 x 3/4 inches) and weighs only 37 grams. Combining high-quality images with a miniaturized body, the XCD-MV6 is ideally suited for space-restricted machine vision and robotic applications.

FEATURES:
*  1/3-type CMOS Sensor
*  VGA Resolution at 60 fps
*  752 x 480 pixels
*  500 TV Lines
*  Binning and Partial Scan Functions
*  Ultra-compact & lightweight body 29 x 29 x 19mm/37g
*  IEEE-1394.b Digital Interface
*  Beta Type IEEE 1394 Connector & 8 pin Hirose Connector
*  Various image correction functions Defect pixel correction, fix pattern noise correction and shading correction
*  Variety of Trigger Modes H/W and S/W trigger, Edge/Width, Overlap, Trigger/Strobe
*  Delay, Polarity IIDC Ver. 1.32 Compliant and IEEE-1394b S1600 Compliant - High data transfer rate (up to 1600 Mbps)
*  Broadcast Delivery Function Enables the sending of commands (e.g. software trigger and  adjusting camera settings) when used in a multiple camera system.
*  Temporary Image storage function - Allows for delayed transmission (Max. 100 frames)
*   High shock and vibration resistance

SPECIFICATIONS:
*   Image sensor: 1/3-type progressive scan CMOS
*   Standard output pixels: 640H x 480V (742H x 480V Max.)
*   Cell size (H x V): 6.0 x 6.0 ¦Ìm
*   Lens mount: C Mount
*   Minimum illumination: 1 lx (F1.4, +18 dB, Shutter:1/60s)
*   Sensitivity: 400 lx at F5.6 (0 dB)
*   Gain: Manual (0 dB to +18 dB)
*   Shutter speed: 1 sec to 1/30,000 sec
*   Video output resolution depth: Mono 8: 8 bits/pixel, Mono 16: 10 bits/pixel
*   Readout modes: Partial scan, 2 pixels mixture
*   Readout features: Gamma LUT, Pixel correction, FPN correction, Shading correction
*   Synchronization: Trigger start (Mode 0), Trigger start and exposure duration (Mode 1), Programmable trigger (via the IEEE1394 bus), Trigger inhibit setting, Trigger delay   setting/Strobe control
*   Memory channel: 15 channels for parameter settings
*   Video Output Interface: IEEE 1394b-2002, beta (screw lock possible)
*   Transfer rate (IEEE1394): 1600/800/400 Mbps
*   Digital I/O: IN (2x, TTL), OUT (2, TTL)
*   Power requirements: DC 8 V to 30 V (via IEEE1394b 9-pin cable or 8-pin camera cable)
*   Power consumption: 2.2 W (Max.)
*   Operating temperature: -5 to +45 (23 to 113) deg
*   Operating humidity: 20% to 80% (no condensation)
*   Storage humidity: 20% to 95% (no condensation)
*   Vibration resistance: 10 G (20 Hz to 200 Hz)
*   Shock resistance: 70 G
*   Dimensions (W x H x D): 29 x 29 x 19 mm (1 3/16 x 1 3/16 x 3/4 inches) (not including protruding parts)
*   Mass: 37 g (1.3 oz)
*   Regulations UL60950-1+CSA C22.2 No.60950.1, FCC/ICES-003: Class A, CE: EN61326,   AS/NZ: EN55022, VCCI: Class A


Related Items:


Sony PCS-XG55 HD Video Conferencing System

Sony PCS-XG55 HD Video Conferencing System
Item Number: PCS-XG55
Condition: New

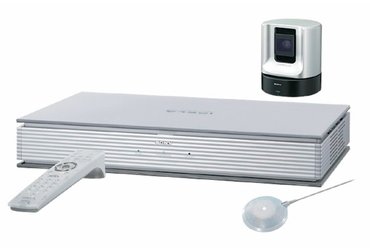

PCS-G50 Video Communication System
