We specialize in Discount Block Camera, Zoom Camera & High Speed Camera for Sony, Panasonic, Hitachi, LG, SAMSUNG, CNB, SANYO and Others Products such as Mini Spy Camera, DVR, CCTV Lens, Sports Cameras, Sony SSC Cameras, Sony SNC Cameras,Sony EVI Cameras,Sony Industrial Camera, Mintron Cameras .You can get what you need at the bottom prices!
* 90 degree wide view angle pinhole lens,.6-24v wide voltage; * Small Size: easy to install into narrow room and slim tube, etc.; * High resolution, high sensitivity, high SNR; * Day & night dual mode auto switch; * Low Illumination, Low Current and power consumption; * CMOS sensor generation IV+DSP chip offer true color & HD video
PICK UP ELEMENT
Single chip 1/4CMOS
SYSTEM
NTSC
PAL
NUMBER OF PIXEL
NTSC:720(H)กม480(V)
PAL:720(H)กม576(V)
SENSOR DIMENSION
3.584mm(H)กม2.688mm(V)
HORIZONTAL RESOLUTION
Approximately 480TV Lines
SENSITIVITY
0.1Lux/F2.8
LENS & VIEW ANGLE
F2.8/ 90กใ
S/N RATIO
48dB
AUTO GAIN CONTROL
OUT
WHITE BALANCE CONTROL
OUT
BACK LIGHT COMPENSATION
OUT
VIDEO OUT
1.0V p-p/75ohm
WEIGHT
กกกก6g

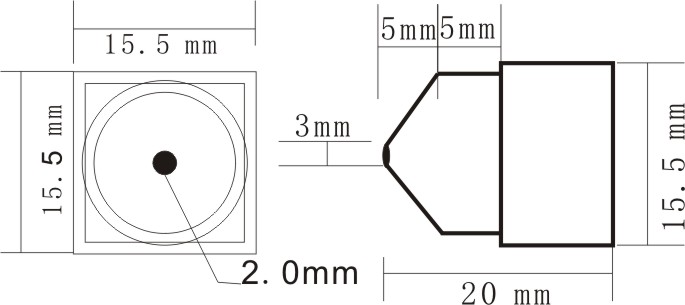

SIZE(LXWXH)
15.5X15.5X20mm
WORK CURRENT
DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT
DC:3.6V-24V
OPERATING TEMPERATURE
- 10กใ C ~ +50กใC ,less than 90% RH
Connection
PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT

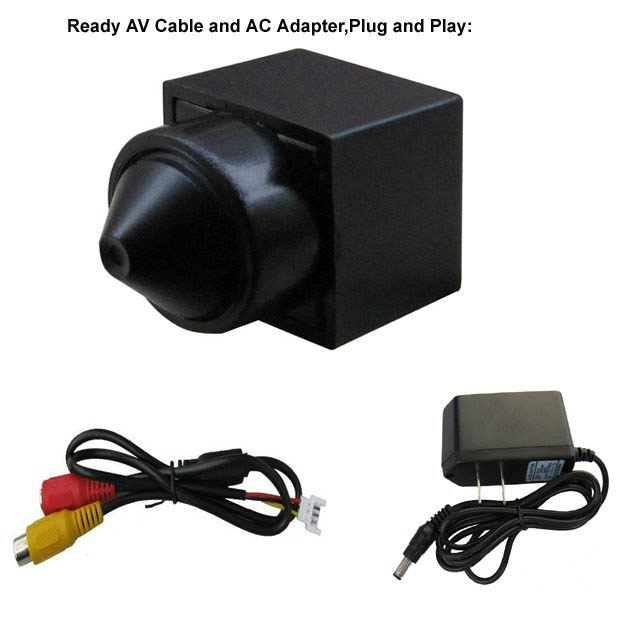

Contents: * mini camera X1; * RCA BNC cable X1; * AC adapter DC5VX1
