8deg accurate VOA 10m Night Vision Screw Holes Mini Spy Camera

8deg accurate VOA 10m Night Vision Screw Holes Mini Spy Camera



Condition:New
Model:SPY520SP70




This mini camera comes with high sensitive CMOS sensor, which has excellent video function and very low illumination. It is of high stability and ultra long working life.

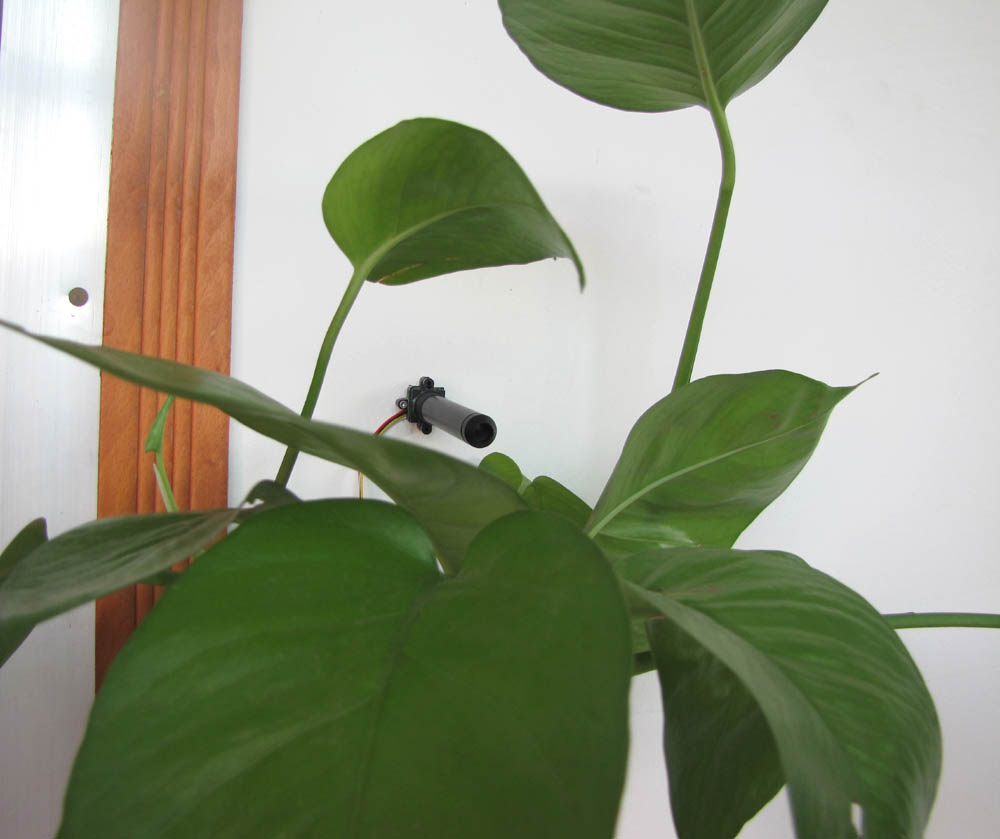

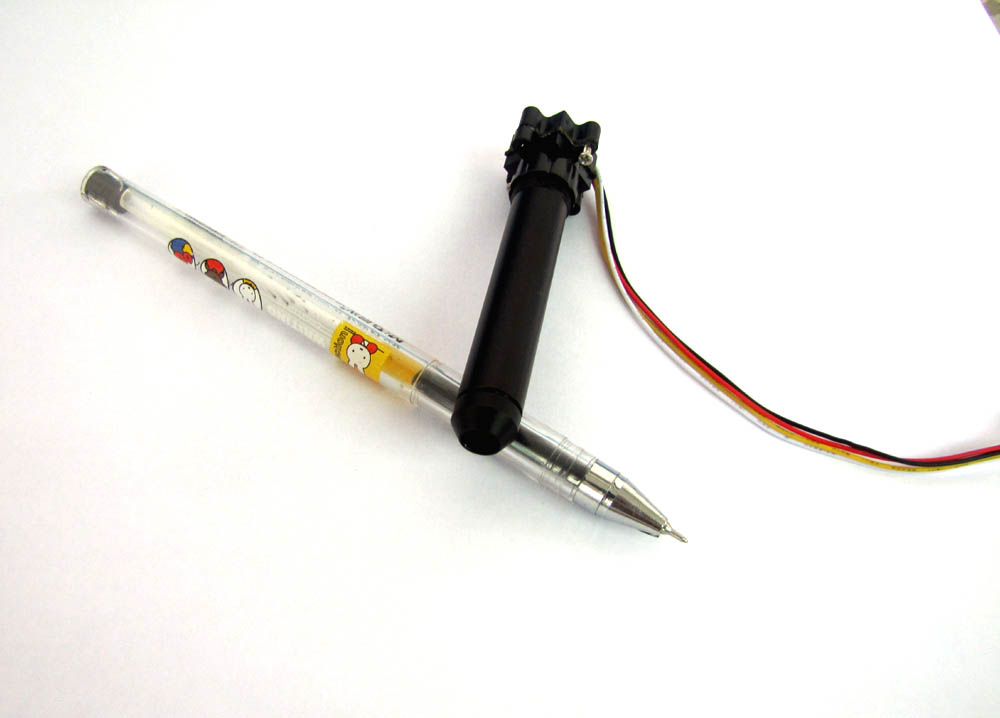

Small size(14X14X79mm) and light weight(13g), with two screw holes, it is easy to install into the ceiling, wall, cabinets, equipments, etc. for safe surveillance.0.008lux super low illumination, which can see clearly in almost complete darkness.8 degree view of angle for more precise image, which can see small text 10 meters away.

Main Features:


1. Small Size: easy to install into narrow room: ceilling,wall,cabinets equipments, etc.;
2. Light Weight with 2 screw holes: easy to install without causing unnecessary damage on object surface;
3. High resolution, high sensitivity, high SNR;
4. 8 degree view of angle for more precise image, which can see small text 10 meters away;
5. Day & night dual mode auto switch;
6. Low Current and power consumption;
7. CMOS sensor generation IV +DSP chip offer true color & HD video.

8deg accurate VOA 10m Night Vision Screw Holes Mini Spy Camera
8deg accurate VOA 10m Night Vision Screw Holes Mini Spy Camera

Specifications:

Pick Up Element : Single chip 1/4 CMOS
Number of pixel : NTSC:720(H) x 480(V) PAL : 720(H) x 576(V)
Sensor dimension: 3.584mm(H) x 2.688(V)
Horizontal Resolution: Approximately 520 TVL
Sensitivity: 0.008Lux/F1.2
Lens & View angle 70mm F3.0 / 8 degree
S/N Ratio: 48DB
Video Out : 1.0V p-p/75ohm
Audio Out : 1.0V p-p/1Kohm

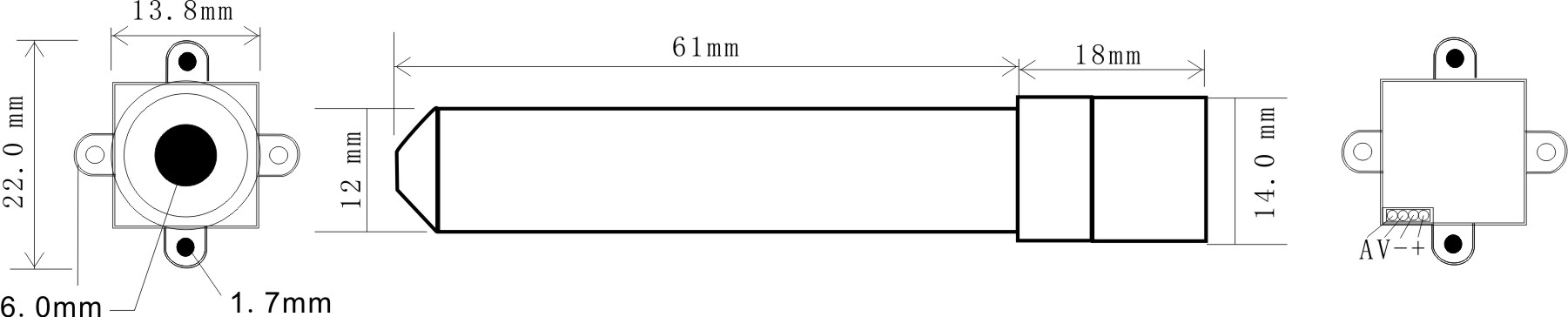

Size (L x W x H) : 14mm x 14mm x 79mm
Weight: 13G
Work Current: 5V: 65mA 12V: 32mA
Power Requirement : DC 3.3V-24V
Operating -10 to + 50 Degrees Celsius ,less than 90% RH
Connection: PIN1->Red DC5V PIN2->Black GND PIN3->Yellow VIDEO OUT PIN4->White AUDIO OUT

Use Method:

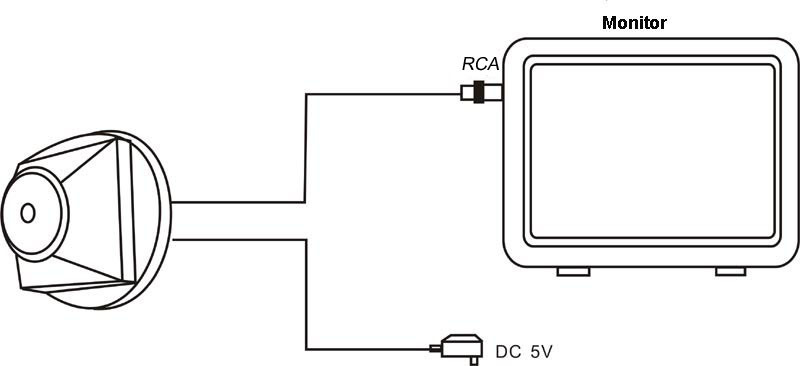

1£©Work with TV/monitor: Camera powered by provided AC adatper. Connect it to TV/monitor with RCA/BNC cable. Then watch live video & audio, or record, play on the TV/monitor;

2)  Work with DVR(AV-IN jacked,e.g.TE968H)£ºCamera powered by DVR. Just directly connect the camera with DVR,   it starts to work. Then watch live video & audio, or record, play,  take pictures on DVR.

8deg accurate VOA 10m Night Vision Screw Holes Mini Spy Camera
8deg accurate VOA 10m Night Vision Screw Holes Mini Spy Camera

package:

1 x Mini camera
1 x  cable
1 x AC adapter
