Features: * 170degree wide view angle,3.6-24v wide voltage * Small Size: easy to install into narrow room and slim tube, etc.; * High resolution, high sensitivity, high SNR; * Day & night dual mode auto switch; * Low Illumination, Low Current and power consumption; * CMOS sensor generation IV+DSP chip offer true color & HD video.
PICK UP ELEMENT
Single chip 1/4CMOS
SYSTEM
NTSC
PAL
NUMBER OF PIXEL
NTSC:720(H)¡Á480(V)
PAL:720(H)¡Á576(V)
SENSOR DIMENSION
3.584mm(H)¡Á2.688mm(V)
HORIZONTAL RESOLUTION
Approximately 480TV Lines
SENSITIVITY
0.1Lux/F2.8
LENS & VIEW ANGLE
F2.8/ 170¡ã
S/N RATIO
48dB
AUTO GAIN CONTROL
OUT
WHITE BALANCE CONTROL
OUT
BACK LIGHT COMPENSATION
OUT
VIDEO OUT
1.0V p-p/75ohm
AUDIO OUT
1.0V p-p/1Kohm
WEIGHT
8g

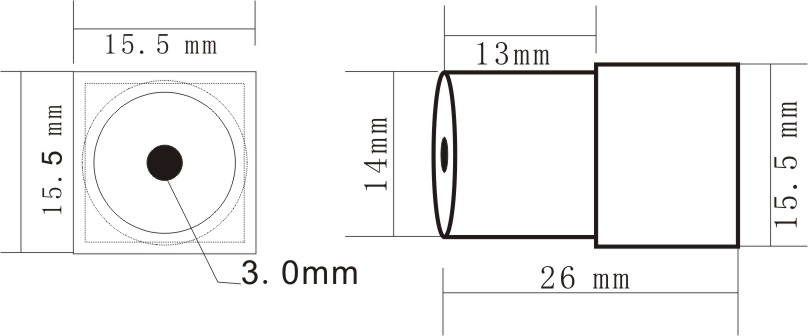

SIZE(LXWXH)
15.5X15.5X26mm
WORK CURRENT
DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT
DC:3.6V-24V
OPERATING TEMPERATURE
- 10¡ã C ~ +50¡ãC ,less than 90% RH
Connection
PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=>White AUDIO
Contents: * mini camera X1; * RCA BNC cable X1; * AC adapter DC5V:X1
