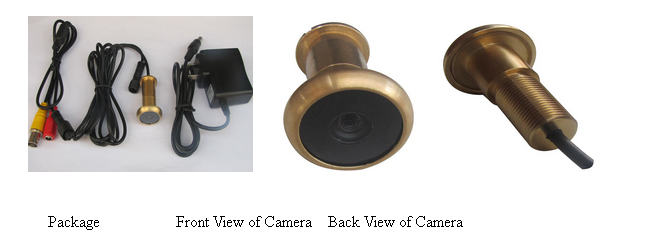

13.8mm Diameter 90deg View Angle 0.008lux Door Peephole Viewer Camera

13.8mm Diameter 90deg View Angle 0.008lux Door Peephole Viewer Camera


pure brass materia;13.8mm diameter;90deg view angle;0.008lux


Condition:New
Model:SPY520E50




This Door Peephole uses the high sensitive imaging device and pure brass material, which brings noble and durable quality and superior imaging capabilities. Extremely low illumination, broad view angleŁ¬ultra long working life and easy installation. It's a good helper for home monitoring and burglar.

Main Features:


1. Pure brass material, noble and durable;
2. Same size with original optical peephole. Keep original appearance after installation;
3. 0.008lux extremely low illumination, which makes it can clearly see the visitor even under dim light;
4. 90 degree broad view angle;
5. 13.8mm super small diameter, which is suitable to all doors with peephole. No need to drill hole, just install directly;
6. Low power consumption to assure the long time working life;
7. Directly connect BNC cable to TV/monitor/DVR, it's very quick & easy.

Installation:

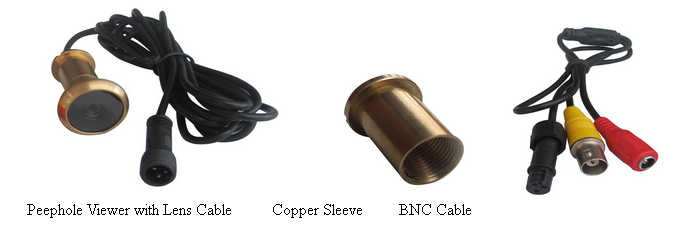

1. Use one coin or other tool to uninstall the original optical viewer;
2. Unscrew copper sleeve off and pass lens cable through peephole from outside to inside of door. Set lens cable into sleeve; screw sleeve into peephole inside of door. (Pay attention to horizontal direction of lens);
3. Connect lens cable with BNC cable and fix it well. Then connect BNC cable with TV/monitor/DVR to start monitoring.

13.8mm Diameter 90deg View Angle 0.008lux Door Peephole Viewer Camera
13.8mm Diameter 90deg View Angle 0.008lux Door Peephole Viewer Camera

Specification:

Pick Up Element : Single chip 1/4 CMOS
Number of pixel : NTSC:720(H) x 480(V) PAL : 720(H) x 576(V)
Sensor dimension: 3.584mm(H) x 2.688(V)
Horizontal Resolution: Approximately 480 TVL
Sensitivity: 0.008Lux/F1.2
Lens & View angle F1.2 / 90deg
S/N Ratio: 48DB
Auto Gain Control : Out
White Balance: Out
Back Light: Out
Video Out: 13G
Work Current: 1.0V p-p / 75ohm
Weight: 35G
Work Current : DC 12V : 35mA
Power Requirement : DC 3.6-24V
Operating: -10 to + 50 Degrees Celsius ,less than 90% RH
Connection: PIN1->Red DC PIN2->Black GND PIN3->Yellow VIDEO OUT


13.8mm Diameter 90deg View Angle 0.008lux Door Peephole Viewer Camera

Related Items:


5 Meters Wireless Inspection Camera

5 Meters Wireless Inspection Camera
Item Number: SPY5MWE-800A
Condition: New

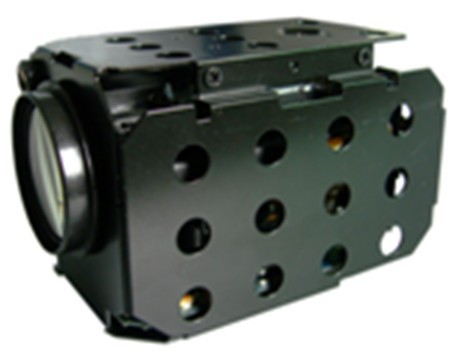

HD IR-CUT WB Double Filter Switching 1/3 CCD SONY 650TVL Color Zoom Camera
