Ultra small high definition CCTV camera with excellent night vision


Condition:New
Size:10.5X11.5X17.5mm
Model:SMC900-PYV9




Features:

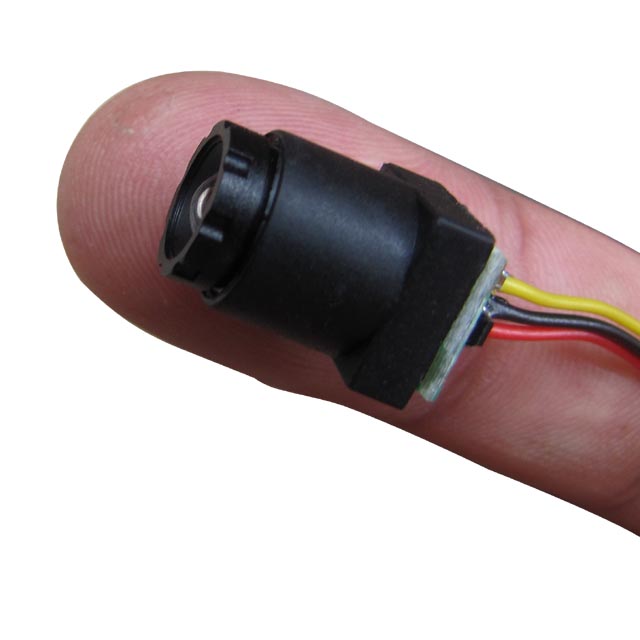

It's an ultra small  high definition CCTV camera with excellent night vision.
Size is 10.5X11.5X17.5mm only, Weight is 1g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
90degree wide view angle provides broad surveillance field.
Full TV system. Applicable worldwide.

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
0.008Lux 520TVL Mini CCTV Camera 90degree view angle with audio

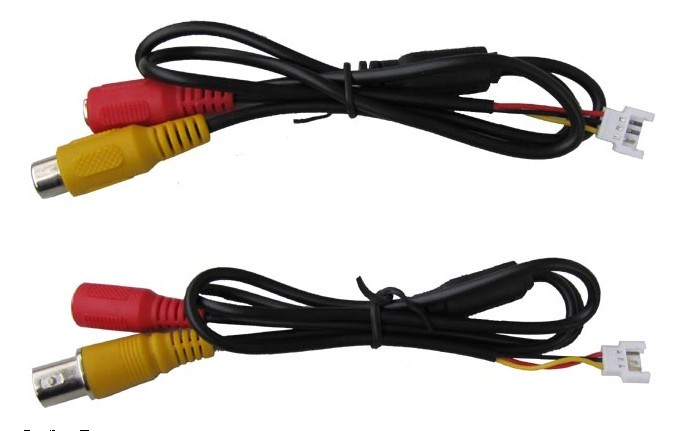

Ready AV/BNC cable and power supply cable. Just plug & play!
0.008Lux 520TVL Mini CCTV Camera 90degree view angle with audio

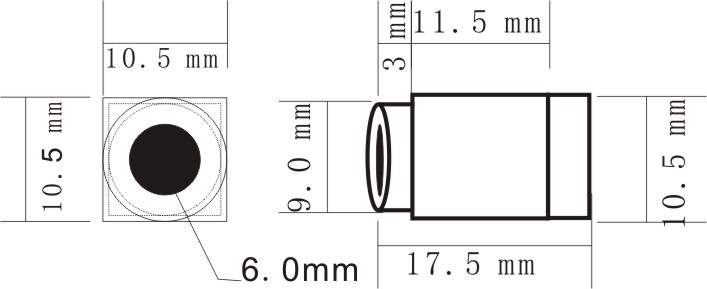

Outline Size:


0.008Lux 520TVL Mini CCTV Camera 90degree view angle with audio

Specificaiton:



PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC656H492V PAL786H576V
IMAGE SIGNAL PROCESS Digital Signal Processing System
SENSOR DIMENSION 4.75mmH3.55mmV
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 21 Interlace
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F2.0 /90
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT 1/60 S TO 1/100000 S OUT 1/50 S TO 1/100000S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
SIZE (L x W x H) 10.5x10.5x17.5mm
WEIGHT 2g
WORK CURRENT 70mA
POWER REQUIREMENT DC 3.6V-24V
OPERATING TEMPERATURE - 10 C ~ +50C less than 90% RH
Connection PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT

Contents:
* Mini camera X1;
* RCA/BNC cableX1;
* AC adapter X1
